Asus

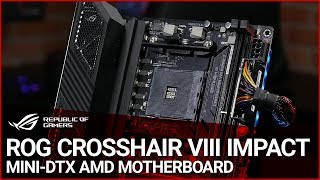

ROG Crosshair VIII Impact (AMD AM4) DDR4 X570 Chipset Mini-DTX Motherboard

  • AMD AM4
  • X570
  • Mini-DTX Form Factor
  • Dual M.2
  • WIFI 6,


1 In stock

£359.99 *



pay with credit card pay with amazon payments pay with bitcoin Pay by Finance with Hitachi Personal Finance

Stock Code: MB-6DW-AS

EAN: 00000000

MPN: MB-6DW-AS

Manufacturer: Asus

tech communitySupported by the biggest tech community forums.overclockers.co.uk
Direct Service Hotline
+44 (0)1782 44 44 55
What our customers say about us
4.8 Google Customer Reviews

Product information:

ROG Crosshair VIII Impact (AMD AM4) DDR4 X570 Chipset Mini-DTX Motherboard

  • AMD AM4 socket: Ready for 2nd and 3rd Gen AMD Ryzen™ processors and up to two M.2 drives, USB 3.1 Gen2 and AMD StoreMI to maximize connectivity and speed
  • SO-DIMM.2: Bundled expansion card with heatsink allows two M.2 drives to be connected via an SO-DIMM interface and helps control SSD thermals for maximum performance
  • Comprehensive thermal design: An active VRM and chipset combo heatsink and full-sized aluminum backplate with heatpipe add mass to help absorb more heat
  • High-performance networking: On-board Wi-Fi 6 (802.11ax) with MU-MIMO support and Intel Gigabit Ethernet with ASUS LANGuard supports GameFirst V technologies
  • Advanced water-cooling features: ROG water-cooling zone, water pump + header, and radiator headers enable easy integration with a custom water-cooling loop
  • 5-Way Optimization: Automated system-wide tuning creates overclocking and cooling profiles tailor made for your rig vDIY Friendly Design: Pre-mounted I/O shield, ASUS SafeSlot and IMPACT Control Card IV , which adds BIOS Flashback, Clr CMOS, Q-Code and FlexKey functionality
  • Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen. 2 addressable headers
  • Industry-leading ROG audio: SupremeFX S1220 and ESS® SABRE9023P for enthusiast-grade audio performance, Sonic Studio III and DTS Sound Unbound

Specification:

  • Format:
    MINI-DTX - 8 inch x 6.7 inch ( 20.3 cm x 17 cm )
  • Chipset:
    AMD X570
  • Socket:
    AM4 (Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for Socket AM4)
  • RAM:
    2 x DIMM, Max. 64GB, DDR4 4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/
    3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory
  • Storage:
    3rd Gen AMD Ryzen™ Processors :
    1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
    2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
    1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
    AMD X570 chipset :
    1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
    4 x SATA 6Gb/s port(s),
    Support Raid 0, 1, 10
  • Slots (with a 3000- series Ryzen CPU):1 x PCIe 4.0 x16 (x16 mode)
  • Internal Connectors:1 x Aura RGB Strip Headers
    2 x Addressable Gen 2 header(s)
    1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
    2 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support
    4 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s)
    1 x Chassis Fan connector(s)
    1 x W_PUMP+ connector
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin EATX 12V Power connectors
    1 x Front panel audio connector(s) (AAFP)
    1 x Slow Mode switch(es)
    1 x Reset button(s)
    1 x Node Connector(s)
    1 x LN2 Mode jumper(s)
    1 x Safe Boot button
    1 x ReTry button
    1 x System panel connector
    1 x T_Sensor Connector
    1 x W_IN header
    1 x W_OUT header
    1 x W_FLOW header
    1 x Start button
    2 x Radiator Fan Headers
    1 x USB 3.2 Gen 2 (up to 10Gbps) connector
    1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
  • External Connections:1 x Optical S/PDIF out
    1 x Clear CMOS button(s)
    1 x USB BIOS Flashback® Button(s)
    1 x ASUS Wi-Fi Module
    1 x Q-Code LED
    1 x Reset Button
    3 x LED-illuminated audio jacks
    2 x USB 3.2 Gen 1 (up to 5Gbps) ports
    6 x USB 3.2 Gen 2 (up to 10Gbps) ports ()
    Anti-surge LAN (RJ45) port
